PRODUCTS

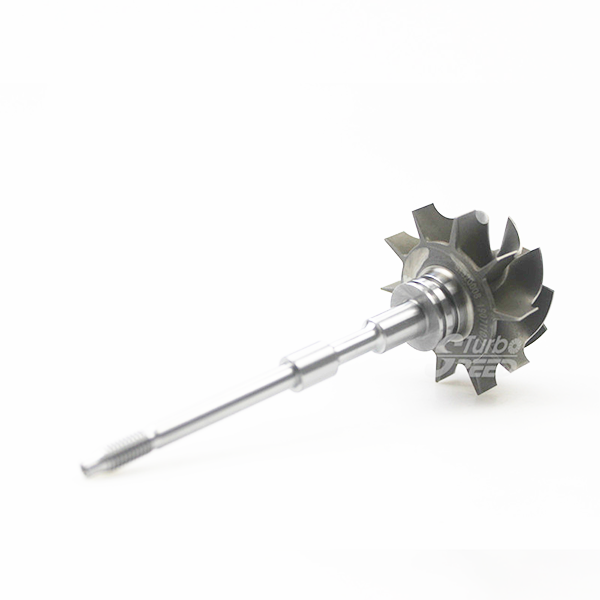

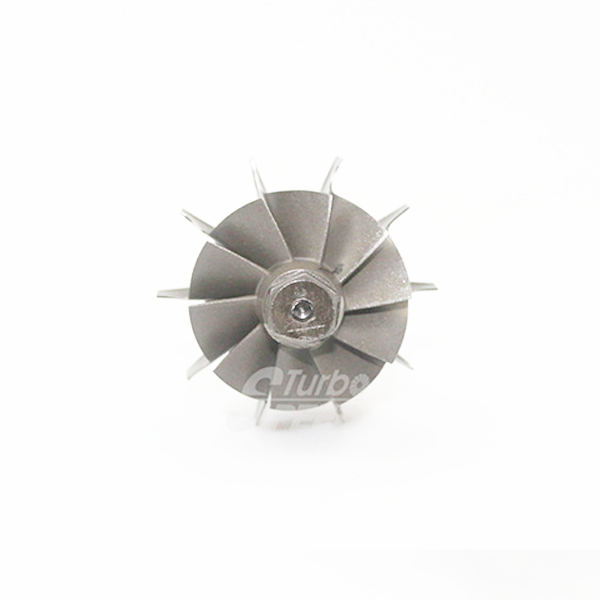

Shaft & Wheel Garrett Series

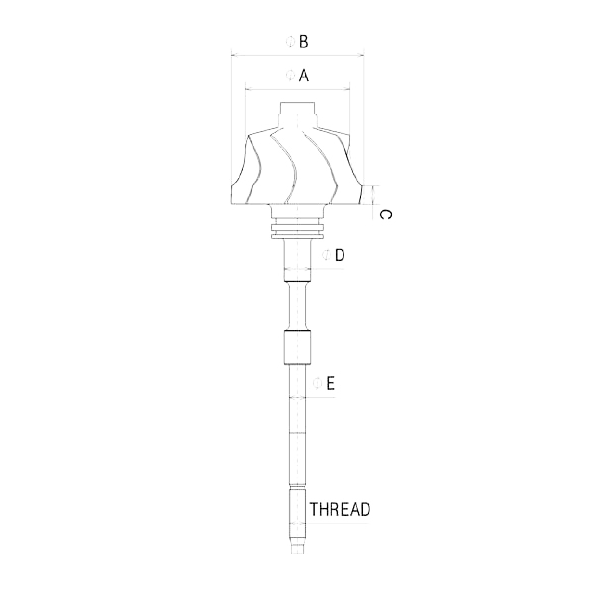

STT P/N | TURBO P/N | Model | Exducer (mm) | Inducer (mm) | Tip Width (mm) | Shaft 1 (mm) | Shaft 2 (mm) | Thread | Blade | Direction |
| G0420010 | 466646-64 | T04E66-5 | 64.57 | 74.2 | 10.71 | 10.156 | 6.346 | 1/4-28UNF-3A LH | 10 | Clockwise |
| G1520008 | 454083-2 | GT1544S | 32.2 | 42.16 | 5.94 | 7.877 | 5.081 | M5×0.8-5h LH | 10 | Clockwise |
| G1520018 | 782404-1 | GT1544V | 33.1 | 39 | 5.39 | 7.877 | 5.081 | M5×0.8-5h LH | 11 | Clockwise |
| G1520025 | 757886-3 | GTB1549V | 34.79 | 41 | 8.12 | 7.877 | 5.081 | M5×0.8-5h LH | 9 | Clockwise |
| G1520031 | 706006-4 | GT1549P | 40 | 40 | 21.24 | 7.877 | 5.081 | M5×0.8-5h LH | 9 | Clockwise |
| G152003 | 753420-5 | GT1544V | 33.1 | 39 | 5.39 | 6.502 | 5.081 | M5×0.8-5h LH | 11 | Clockwise |
| G1520042 | 752341-3 | GT1544V | 30.72 | 39 | 4.92 | 7.877 | 5.081 | M5×0.8-5h LH | 9 | Clockwise |
| G1620003 | 751851-3 | GT1646V | 34 | 41 | 6.43 | 7.877 | 5.081 | M5×0.8-5h LH | 9 | Clockwise |
| G1720013 | 733952-1 | GT1752S | 37.5 | 43 | 8.19 | 7.877 | 5.081 | M5×0.8-5h LH | 9 | Clockwise |
| G1720030 | 767032-1 | GT1749 | 33.83 | 41.23 | 7.36 | 7.877 | 5.081 | M5×0.8-5h LH | 9 | Clockwise |
| G1720035 | 732340-1 | GT1749 | 34.98 | 41.23 | 7.12 | 7.877 | 5.081 | M5×0.8-5h LH | 9 | Clockwise |
| * For more product details, please contact sales. | ||||||||||
